SAFE-O-TRONIC® access LS 100 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day-use mode. The lock is electrically released with a correct PIN code entered on the keypad.

Features:

Lock complies with ADA standards for door locks
Programmable master code (5 digits) to operate the lock(s)
Easily programmed by the user with an easy-to-use keypad
Mounts vertically for raised panel doors
Powered by a 3-AAA battery pack (included)
Low battery indicator via external LEDs
Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
Long battery life (10 lock cycles per day for four years)
Easy installation with only two drill points
Day Mode allows the user to choose their code at the time of operation - recommended for shared lockers or cabinets.

Areas of Application:

For interior use
Suitable for installation in wood laminate, plastic, and metal doors and drawers.

Mount Position:

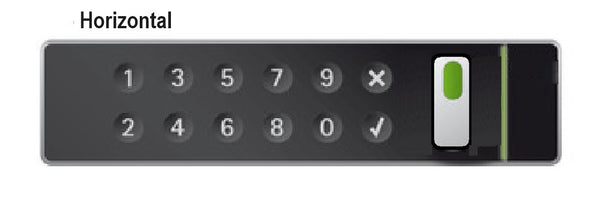

Horizontal; Lever/Knob on Right

Supplied With:

Nut
Straight cam
Mounting screw
Instructions

Technical Data	Electrical
Tensile Load Limit Enviornmental: 1000 N. (225 lbf.)	Supply Voltage: 4.5 VDC
Operating Temp: -10° C to 65° C (14º F to 150º F)	Connections: Battery pack, self-contained.
Humidty (Operating): 0 to 90%, non-condensing	Battery Life: 32,000 lock cycles
Protection: IP 43	Standards Compliance: CE

This is a clearance item. All clearance sales are final and sold "as-is."

Safe-O-Tronic Electronic Locking System LS100
